House Stove, Caravan Stove, Indoor Wood Stove, Tent Stove, Wood Stove, Small Stove, Portable Stove, Mini Wood Stove Oven Small

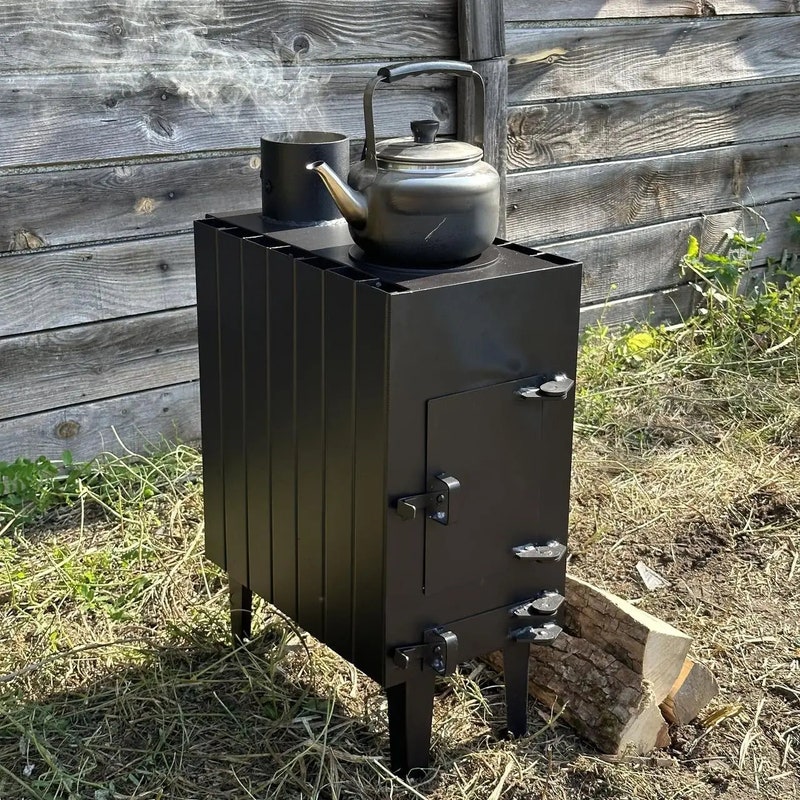

Pebble stove with a radiator and a surface for cooking on wood: a compact metal structure intended for internal heating of premises and cooking.

Features:

The economizer is a "labyrinth" in the furnace chamber: a plate that lengthens the smoke channel – and accordingly, the movement of smoke is lengthened, increasing the efficiency of the furnace and reducing fuel consumption.

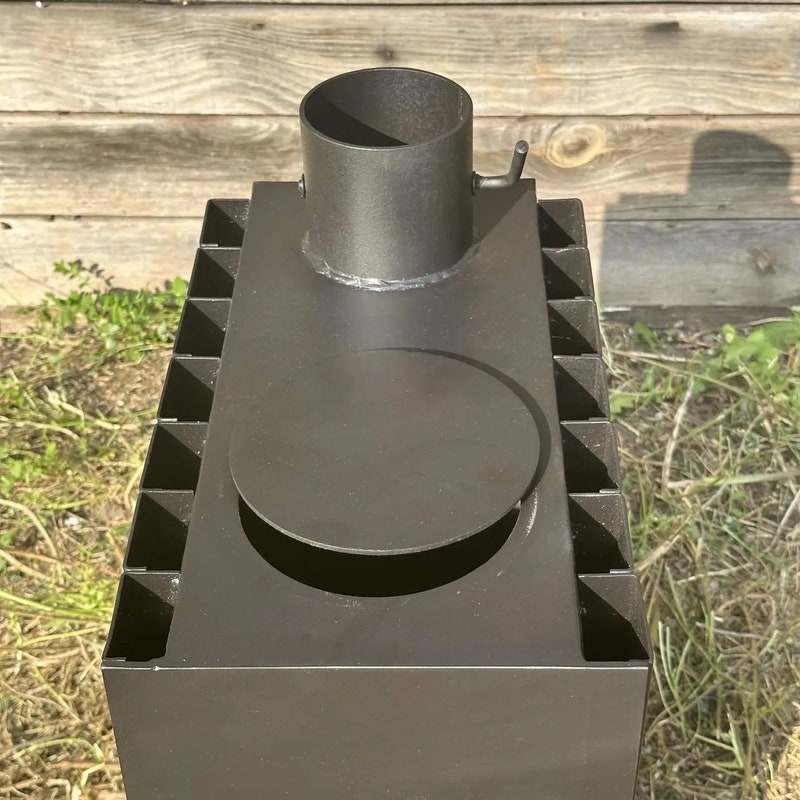

The presence of a cooking surface made of 5 mm steel.

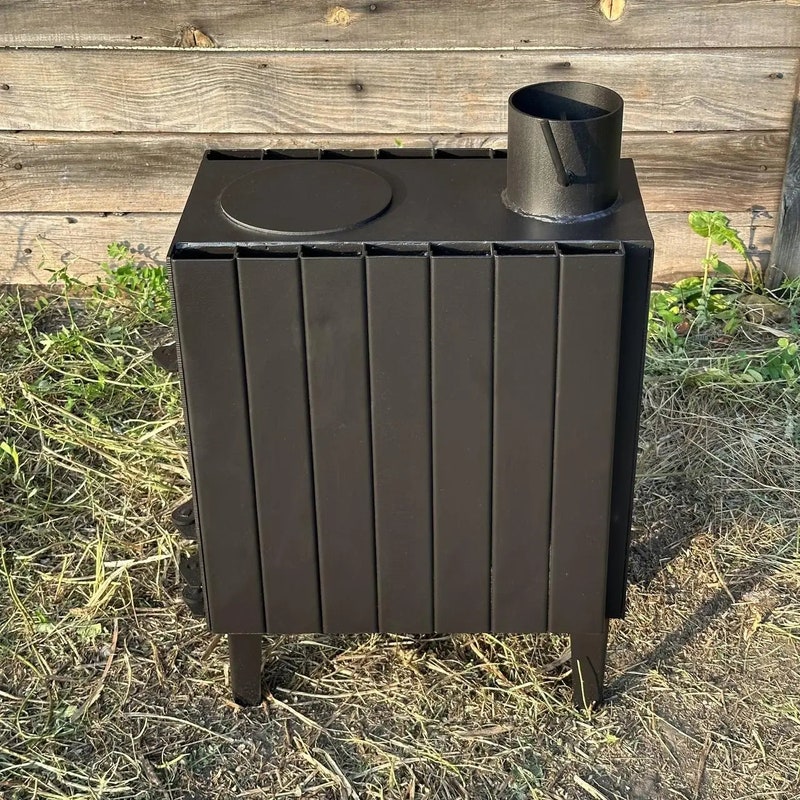

Convection type of heating: the presence of radiator side surfaces, providing a large heated area, with small dimensions of the furnace.

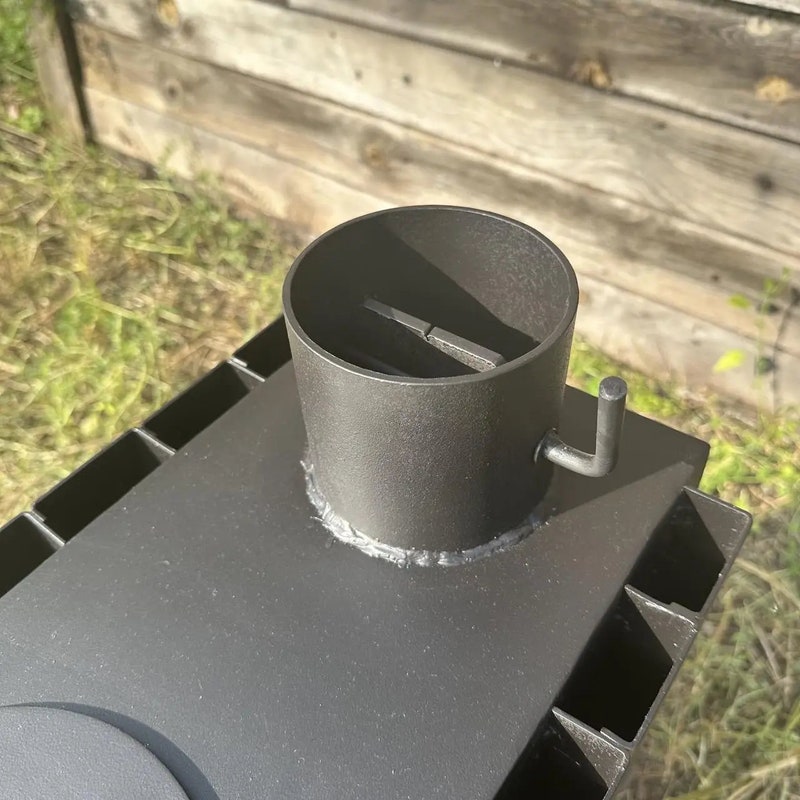

The furnace is equipped with a rotary shutter-slider that regulates draft. The damper is located in the chimney pipe. By turning the damper handle, you can increase or decrease the cross-section of the smoke channel and thus regulate the intensity of burning in the furnace. A standard damper for a steel chimney changes the cross-section of the smoke channel by 85%. Such a percentage is optimal for effective removal of carbon monoxide.

The furnace must be installed on a non-combustible pedestal, at least 100 mm high, and must protrude at least 300 mm from each side of the furnace. This is the key to safe operation of the oven.

Main technical characteristics:

The area of ​​the heated room: up to 50 sq.m
The volume of the heated room: 125 cubic meters
Nominal power 7 W
The maximum power is 8 W
Efficiency 85%
Dimensions of the oven with legs (H*W*D): 700x260x486 mm
Weight: 42 kg
Dimensions of the furnace (H*W*D): 235x192x443 mm
Volume of the furnace: 20 l
Diameter of the cooking surface: 14 cm

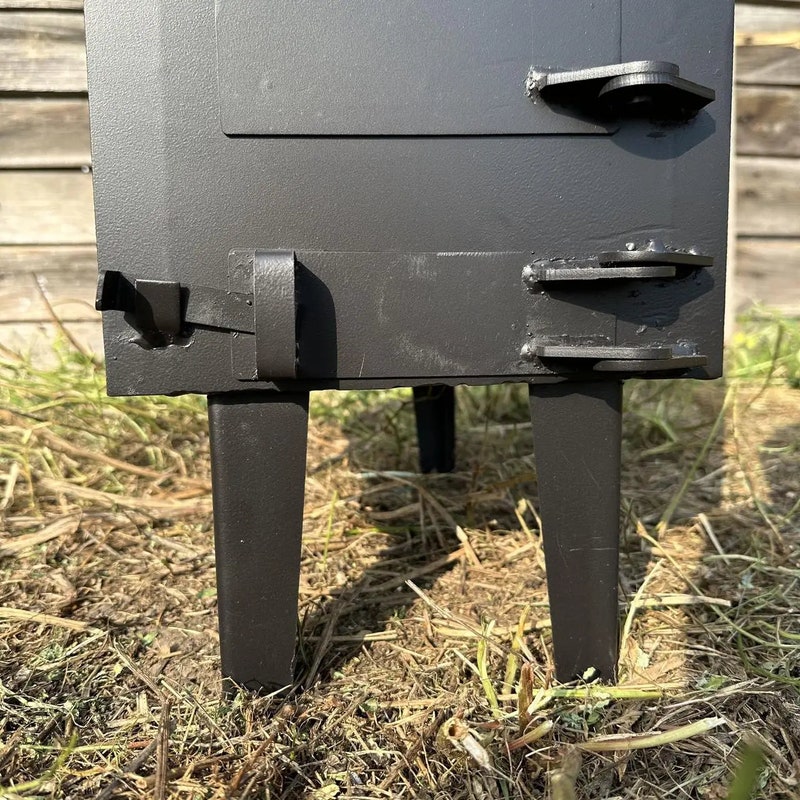

The firebox door 220×152 mm is rotary with a shutter
The door of the ash chamber 43×152 mm is rotary with a shutter
Grill 180×430 mm thick 10-12 mm replaceable
Additional technical characteristics:

The furnace body is made of sheet steel with a thickness of 4 mm
The cooking surface has a thickness of 5 mm
Coating: two layers of heat-resistant paint (up to 800°C)

Fuel type: wood briquettes, firewood
Log length (max.): 430 mm

Production of goods 5-7 days.
Average delivery time to America from 10 to 21 days
Average delivery time to Europe from 7 to 17 days
