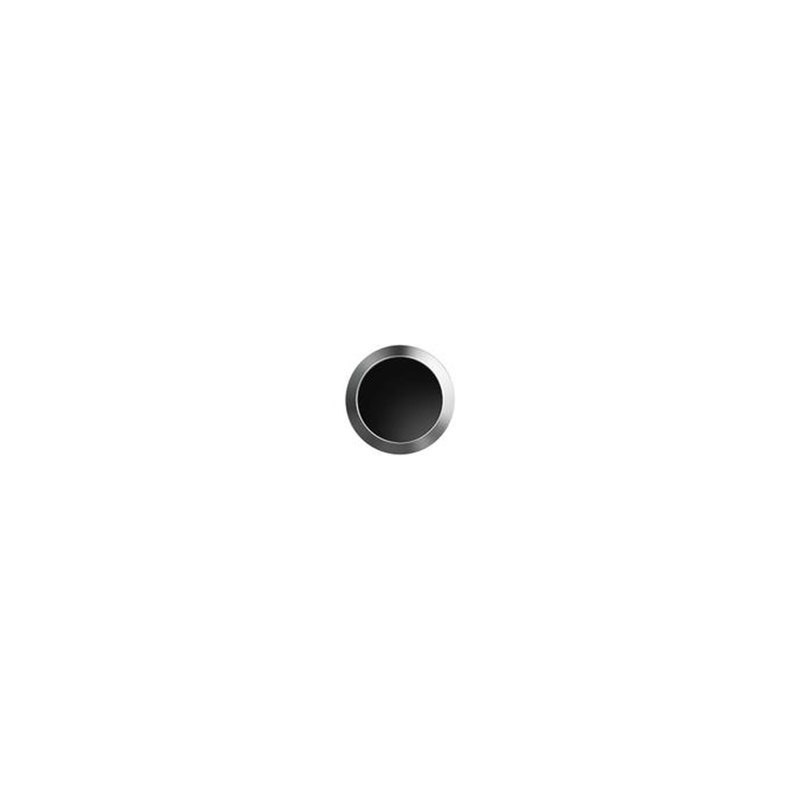

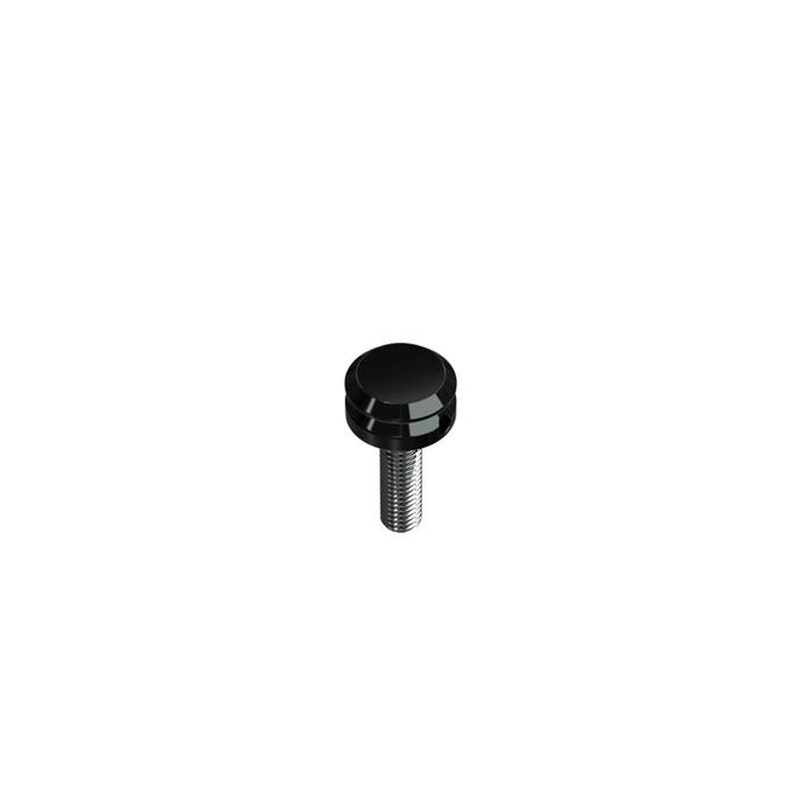

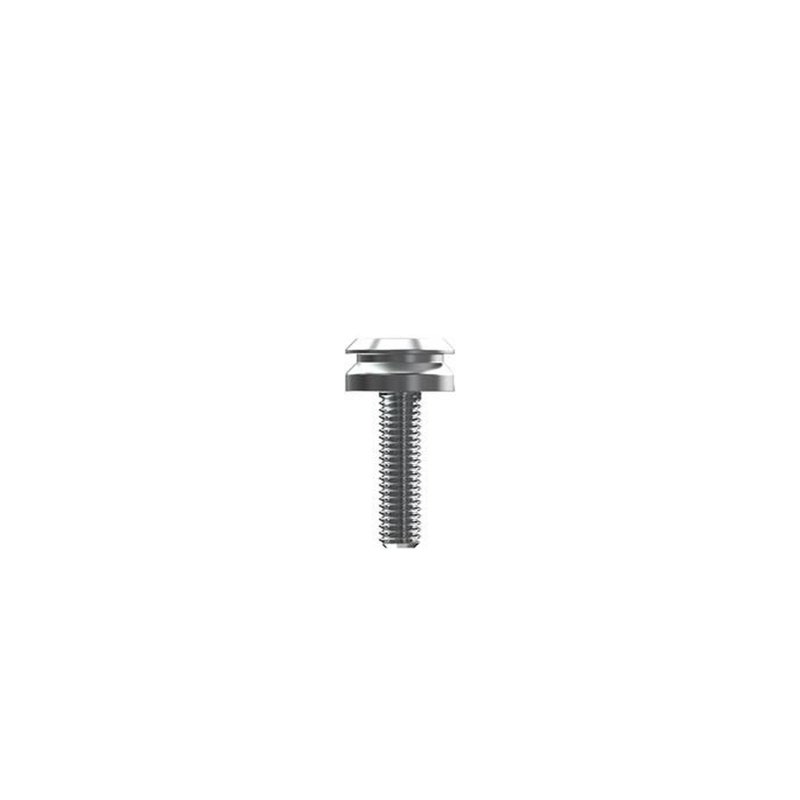

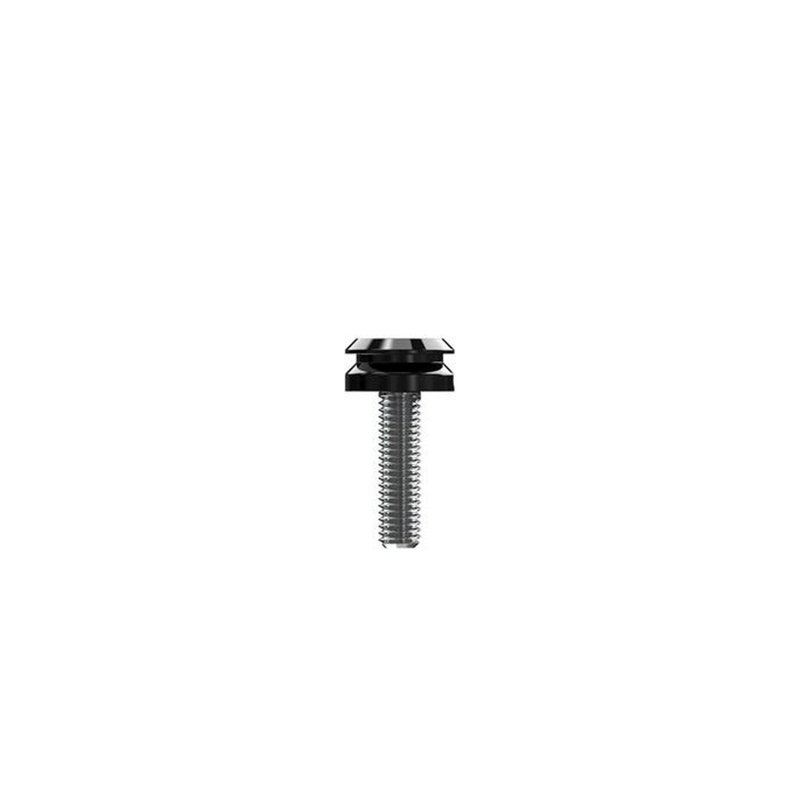

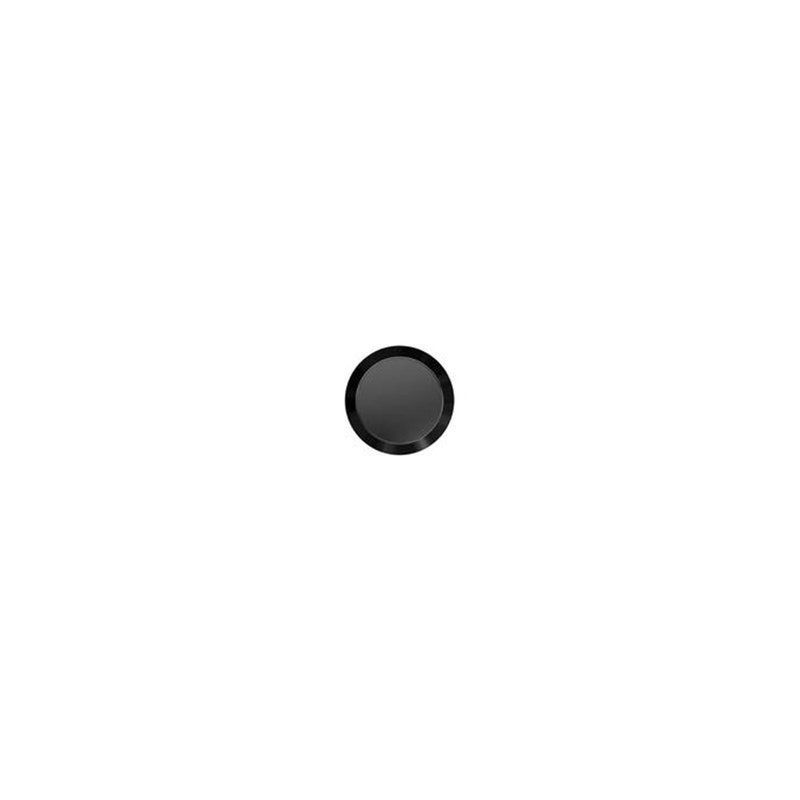

Fidlock SNAP Male M bolt – M5 x 18mm

As screw and fastener in one, this black version of the SNAP male M bolt features a longer M5 screw thread of 18,00 mm. The M5 allows the fitting onto bikes or the use in the mechanical engineering sector. This male Part is compatible with various SNAP female M counterparts.

The load capacity and the suitability of the fastener depend on the size of the components and specific application on the product.

SNAP fasteners always require a combination of a SNAP male part and a female part of the SNAP, SNAP pull or SNAP push product families.

The medium size of the SNAP components is ideally suited for every-day application areas, e.g. as a fastener on urban- or lifestyle bags. Additionally, M fasteners can be applied to textiles as slightly larger alternatives to the SNAP S components. Please note that the load capacity and the suitability of the SNAP fasteners are dependent on the size of the components and custom application on the product.

The SNAP male bolt components are simply screwed into an M5 threaded nut (nut not included in the scope of delivery).

Sector: transportation, outdoor, professionals, medical, bags
Opening mechanisms: defined by female part
Weight: ca. 5 g

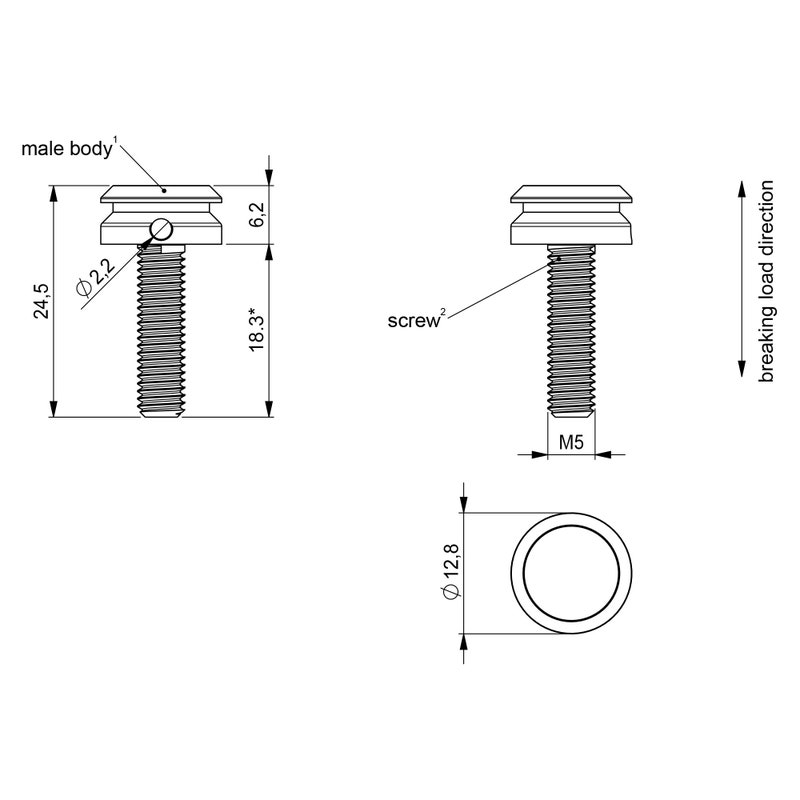

Dimensions (Ø; height), 12,8 mm; 6,2 mm (without threaded shaft)
Material: aluminium, steel (zinc coated)
For material thickness: 18,0 mm
Static breaking load N: 589 N
Static breaking load KG: 60 kg
Colour: black
Assembly: screwing, Punch hole for assembly, 5,0 mm
threaded shaft (length): 18,3 mm
