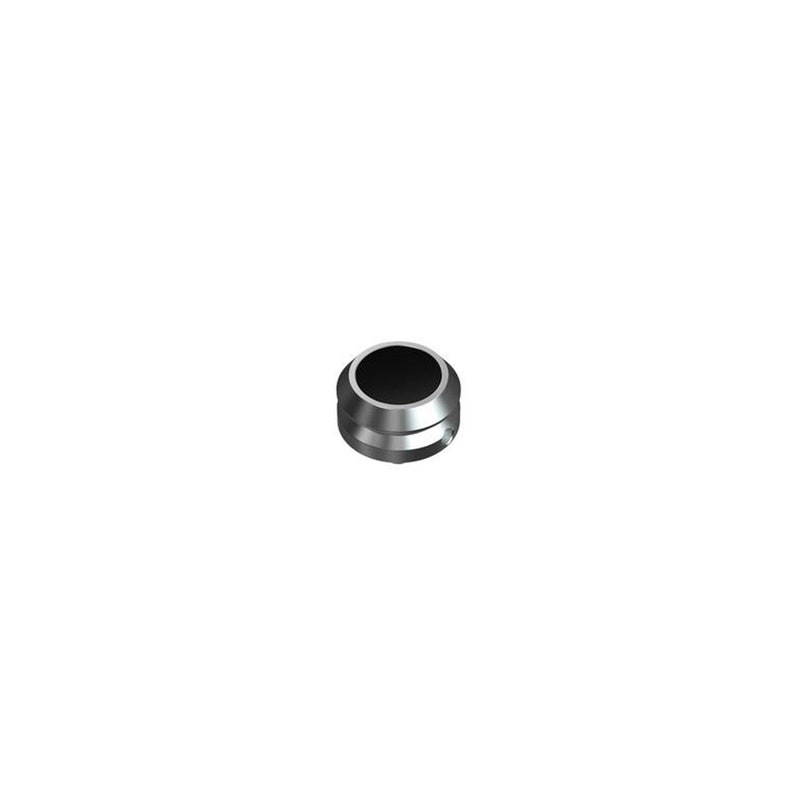

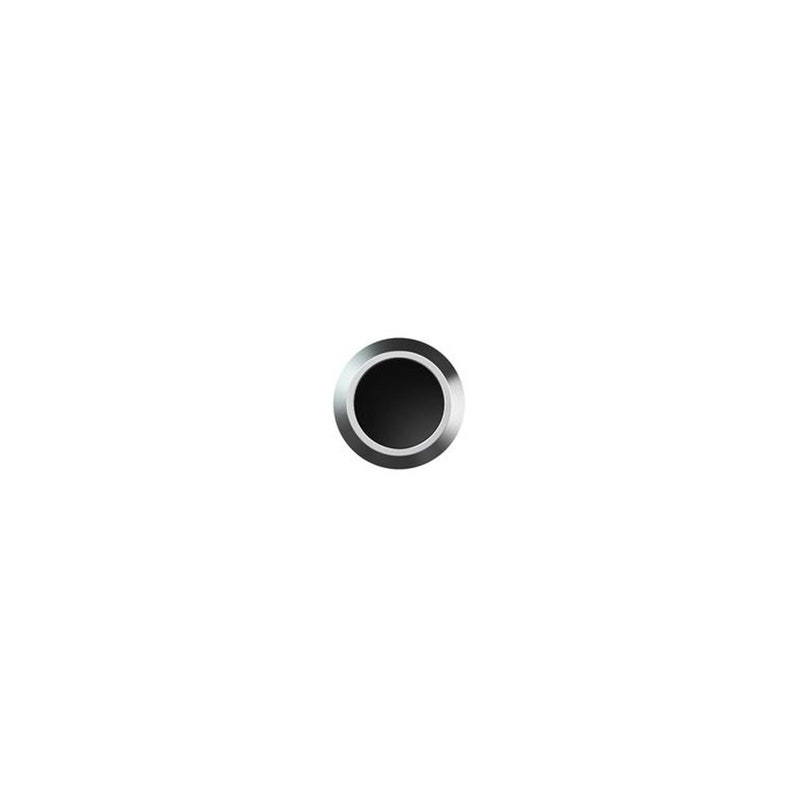

Fidlock SNAP Male L bolt – M5 x 7mm

As screw and fastener in one, the SNAP male L Bolt is the larger version of the SNAP M Bolt. With a 7,0 mm long M5 thread and a head-width of 17,2 mm it can be combined with the SNAP L female components, creating a robust fastening or fixing point. The M5 thread makes the SNAP male L Bolt ideally suitable for bikes or applications in mechanical engineering.

The load capacity and the suitability of the fastener depend on the size of the components and specific application on the product.

SNAP fasteners always require a combination of a SNAP male part and a female part of the SNAP L, SNAP L pull or SNAP L push product families.

The largest size of the SNAP components is also the strongest and ideally suited for application areas which require hard-wearing fasteners with uniquely easy operation, for example as a connector of two bags, to attach a small saddle bag or as a fastener on a school bag. Please note that the load capacity and the suitability of the SNAP fasteners are dependent on the size of the components and custom application on the product.

The SNAP male bolt components are simply screwed into an M5 threaded nut (nut not included in the scope of delivery).

Sector: transportation, outdoor, professionals, medical, bags
Opening mechanisms: defined by female part
Weight: ca. 7 g

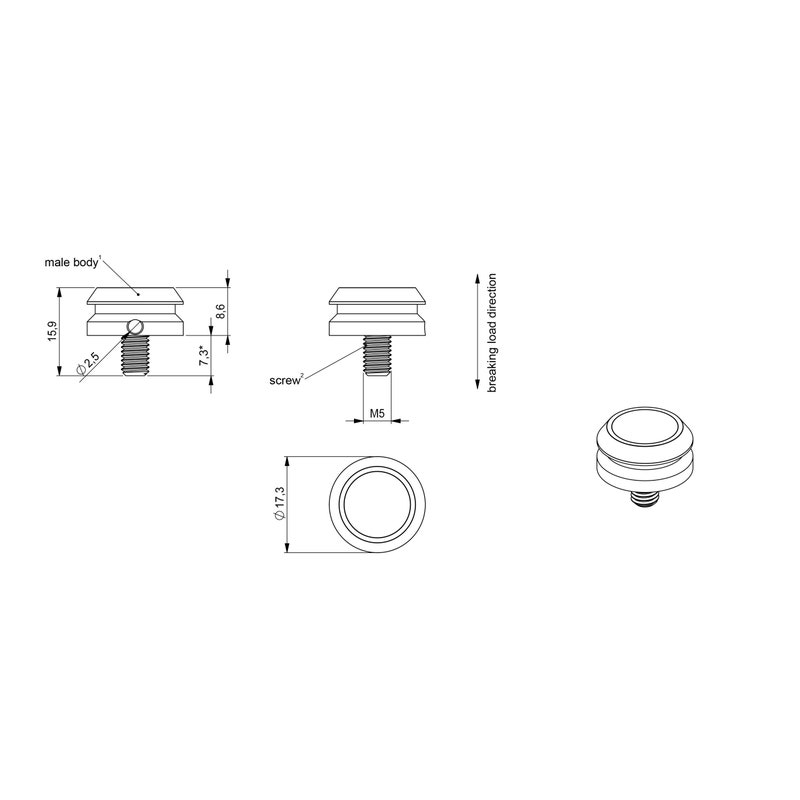

Dimensions 17,3 mm; 8,6 mm (without threaded shaft)
Material: aluminium, steel (zinc coated)
For material thickness: 7,0 mm
Static breaking load N: 589 N
Static breaking load KG: 60 kg
Colour: black or aluminum
Assembly: screwing, Punch hole for assembly, 5,0 mm
threaded shaft (length): 7,3 mm
